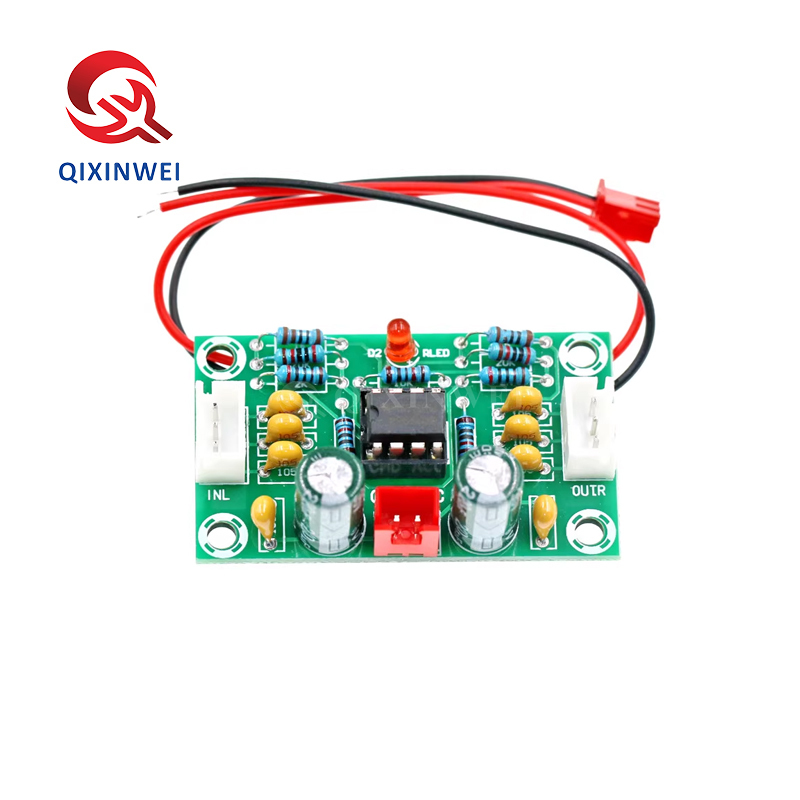

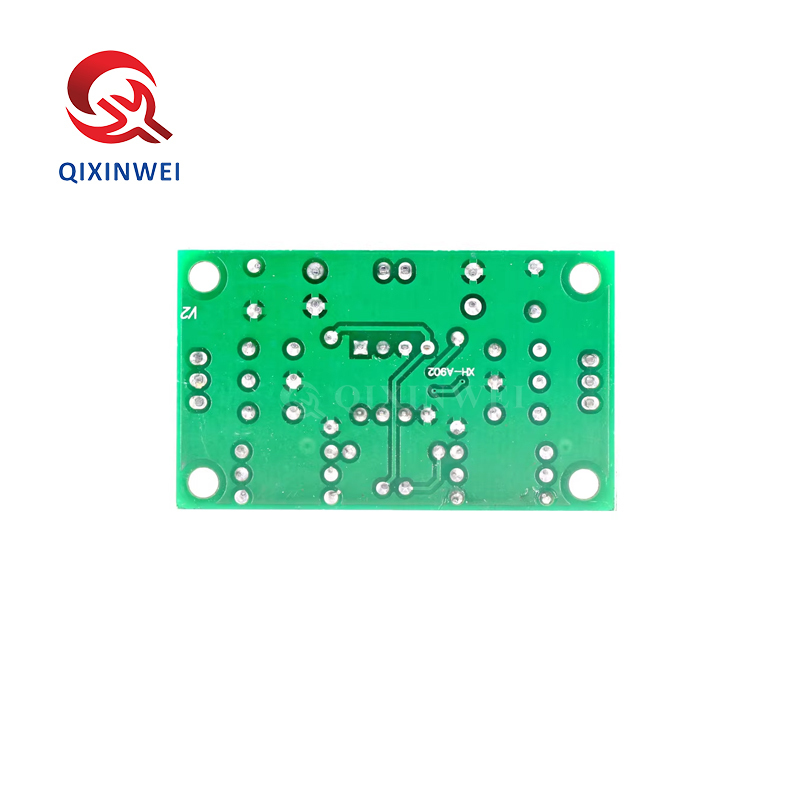

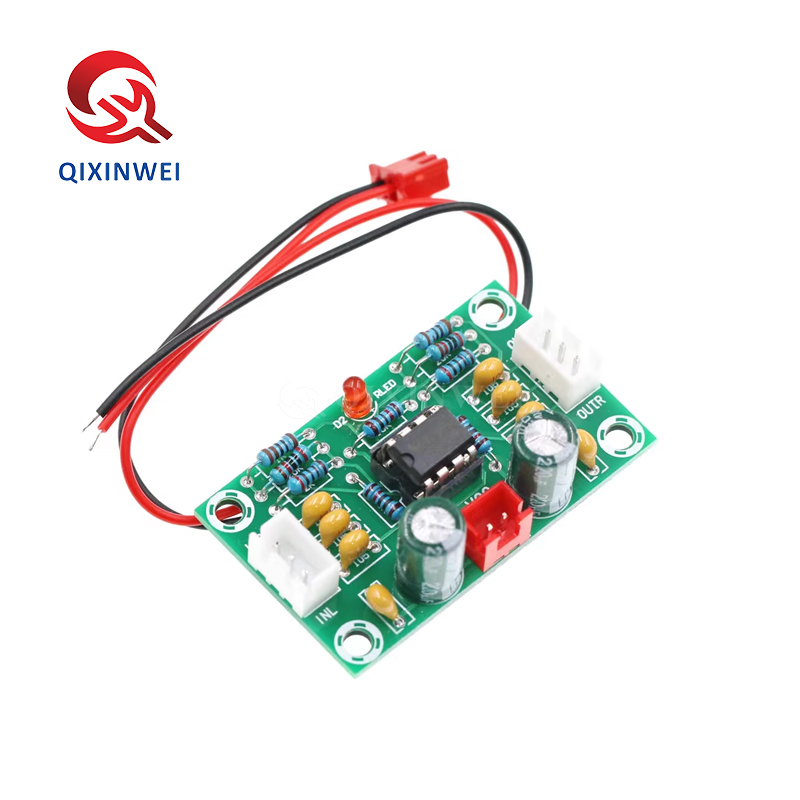

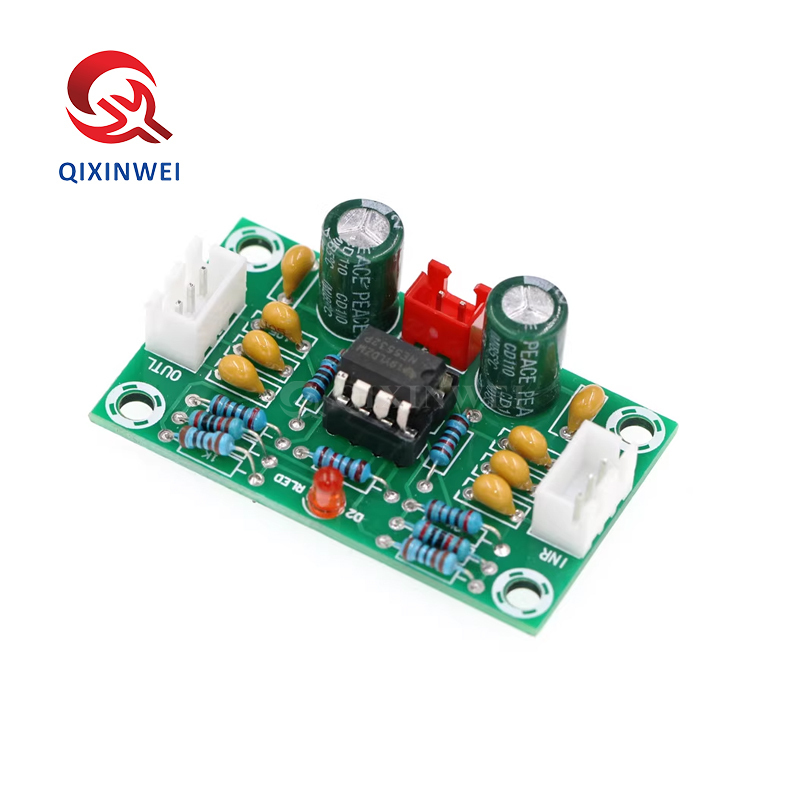

NE5532 Preamplifier Board XH-A902 5X Gain Wide Voltage 12-30V Audio Preamp Module

XH-A902 preamplifier module features NE5532 dual op-amp, 5x gain for signal boosting. Wide DC 12-30V single supply, stereo output, compact 50×30×15mm. For amp front-end, source signal boost, DIY audio upgrades

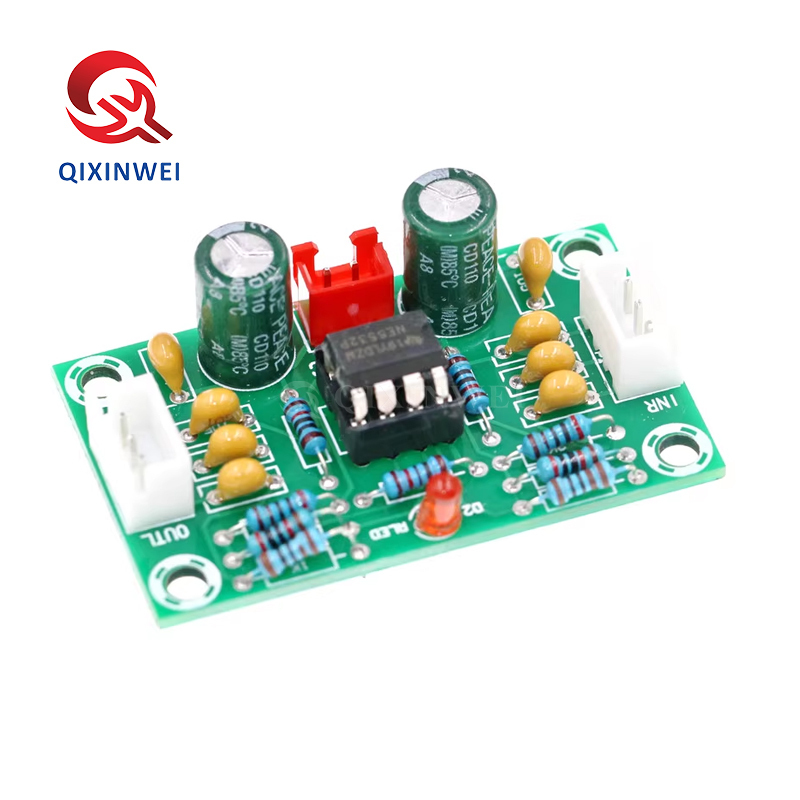

XH-A902 Board Core Chip

◆ Op-Amp
NE5532 ("King of Op-Amps" dual low-noise audio op-amp)

◆ IC Socket
8-Pin DIP round hole socket for easy op-amp replacement/upgrade

Electrical Specifications

◆ Gain
5 times (X5 amplification)

◆ Supply Voltage
DC 12V ~ 30V (single wide-voltage input)

◆ Channels
2 channels (stereo output)

◆ Current Consumption
~600mA

Audio Characteristics

◆ Circuit Topology
Non-inverting operational amplifier circuit

◆ Sound Quality

• Clean sound, low noise floor

• Effective signal boosting

• Improved amplifier drive capability

Physical Specifications

◆ Module Dimensions
50×30×15mm

◆ Mounting Dimensions
43×23mm

◆ Net Weight
~12g

◆ Mounting
M3 mounting holes / direct fixation

Interface Definition

◆ Power
VCC (+) / GND (-), DC 12-30V input

◆ Audio Input
3.5mm jack or 2.54mm header

◆ Audio Output
2.54mm header / 5.08mm terminal

Applications

◆ Amplifier Front-End
Pre-amplification stage for main amplifier circuits

◆ Source Signal Boosting
Improves output from DVD players, phones, MP3 players

◆ DIY Audio Upgrades
Enhances overall system sound quality and loudness

◆ Combo System Modification
For systems with low-amplitude audio sources

Key Advantages

◆ Classic Op-Amp
NE5532 is the renowned "King of Op-Amps"

◆ 5X Gain
Effectively solves amplifier drive deficiency

◆ Wide Voltage
12-30V single supply for broad compatibility

◆ Plug-and-Play
Simple wiring, no tuning required

◆ Replaceable IC
Socket design allows op-amp rolling/upgrades

◆ Compact Size
50×30mm fits various chassis

Why Choose QIXINWEI

Years of experience in the electronics industry. Trusted by global customers.

Massive In-Stock Inventory – Ready to ship promptly

BOM Matching Service – One-stop solution, save time

PCBA Customization – Professional engineering team creates tailor-made solutions based on your needs

Cost-Effective & Efficient – Better channel, better cost

A dedicated team makes your procurement smoother.

Contact us for BOM quotes or PCBA inquiries

Notes : Since the prices of the electronic components are unstable, the prices we show are for reference only. Please confirm the recent prices with us before ordering!

Lead Time : Usually, your parcel will be arranged within 7 days after finishing payment. We'll send it more quickly if it's an urgent order. Thanks for your understanding!

Quantity(Pieces)	1 ~ 30000	30001 ~ 300000	> 300000
Est. Time(days)	5	7	To be negotiated

FAQ:

1. What is the NE5532 preamplifier board XH‑A902 and its key specifications?
   The XH‑A902 is a compact stereo audio preamplifier module built around the classic NE5532 low‑noise dual operational amplifier. It provides a fixed voltage gain of 5× (approximately +14 dB), making it ideal for boosting weak line‑level signals (such as from a phone, MP3 player, or DAC) before they enter a power amplifier. Key specifications: operating voltage 12 V – 30 V DC (single supply), stereo input and output via 3.5 mm audio jacks, an on‑board volume potentiometer for output level control, and an LED power indicator. The NE5532 chip is renowned for its low noise, high slew rate, and excellent audio performance, making this module a popular choice for upgrading the sound of car audio systems, DIY speakers, and home theatre setups.

2. How do I connect the XH‑A902 preamp to a power supply, audio source, and amplifier?
   Wiring is straightforward. Power input: connect a 12 V – 30 V DC power supply to the screw terminals labelled VCC (+) and GND (-). Audio input: connect your source (phone, computer, Bluetooth receiver) to the IN 3.5 mm jack. Audio output: connect the OUT 3.5 mm jack to your power amplifier, active speakers, or mixer input. The on‑board volume knob adjusts the output level. The board operates on a single‑ended supply and does not require a dual‑rail power source. Always double‑check polarity before powering on, as the module has no reverse‑polarity protection.

3. What is the gain of the XH‑A902 preamp, and is it adjustable?
   The module has a fixed voltage gain of 5× (≈14 dB), which is set by the feedback resistors soldered on the board. This gain is not adjustable via the potentiometer — the knob on the board is a volume control (attenuator) placed before the NE5532 input, which only reduces the signal level. If you need a different gain, you must replace the SMD feedback resistors on the board. The standard 5× gain is sufficient to bring a typical line‑level signal (~1 V RMS) to a level that comfortably drives most power amplifiers to full output.

4. What power supply voltage does the XH‑A902 require? Can I use a 12 V battery?
   The module accepts a wide DC voltage range of 12 V to 30 V. It works perfectly with a common 12 V lead‑acid battery, a 12 V or 24 V switching power supply, or a 3S to 7S Li‑Ion battery pack. The NE5532 is powered through an on‑board voltage divider and filter that creates a mid‑rail reference, allowing the chip to run from a single supply. Using a higher voltage within the rated range slightly increases the available headroom before clipping. However, do not exceed 30 V, as it may damage the chip and the filter capacitors.

5. What is the function of the potentiometer on the XH‑A902 board? Does it control gain or volume?
   The on‑board potentiometer is a volume control. It acts as a passive attenuator that reduces the input signal level before it reaches the NE5532. This means you can use it to match the output level of your source to your amplifier and to adjust the listening volume. The preamp's fixed 5× gain remains constant; turning the knob clockwise increases the signal reaching the amplifier stage, and counter‑clockwise reduces it.

6. Can the XH‑A902 be used as a headphone amplifier?
   It can drive high‑impedance headphones (typically 120 Ω and above) to moderate listening levels, but it is not designed as a dedicated headphone amplifier. The NE5532 has a limited output current capability and is optimized for driving line‑level loads (10 kΩ or higher). If you connect low‑impedance (16 Ω – 64 Ω) headphones, the sound may be distorted and the chip could overheat. For headphone use, add a dedicated headphone amplifier module (such as a TPA6120 or a simple transistor buffer) after the XH‑A902.

7. How does the NE5532 preamp compare to other op‑amp preamps like the TL072 or LM358?
   The NE5532 is a significantly higher‑performance audio op‑amp than the TL072 (JFET‑input, lower noise than LM358 but still noisier) or the LM358 (general‑purpose, high noise, low slew rate). The NE5532 offers extremely low noise (5 nV/√Hz), a high slew rate (9 V/µs), and very low distortion, resulting in a cleaner, more detailed, and dynamic sound. It is a favourite among audio enthusiasts for upgrading the preamp stage in consumer equipment. While the TL072 is often preferred for its JFET input impedance in specific guitar circuits, the NE5532 generally delivers superior audio fidelity for line‑level preamplification.

8. Why is there background noise, hum, or no sound from my XH‑A902 module?
   Common causes and solutions: 1) Power supply noise – use a well‑filtered supply; add a 100 µF electrolytic capacitor directly across VCC and GND on the module. 2) Ground loop hum – ensure the preamp, source, and amplifier share a common ground; if using a metal enclosure, isolate the audio jacks. 3) No sound – check that the volume knob is turned up; verify that the input and output cables are fully inserted. 4) Distorted sound – the input signal may be too strong, causing clipping; reduce the source volume. 5) Faulty chip or solder joints – inspect the board for cold solder joints, especially around the NE5532 and the potentiometer.

9. What are the most typical applications for the XH‑A902 NE5532 preamp board?
   It is widely used in DIY car audio upgrades (to boost the head‑unit signal before an external amplifier), home audio systems (adding a preamp to a pure power amplifier), portable Bluetooth speaker builds (amplifying the Bluetooth module output), computer speaker upgrades, and musical instrument preamplification (for electronic keyboards or piezo pickups with an appropriate impedance buffer). Its small size, low noise, and wide supply voltage make it easy to embed in almost any audio project that needs a clean gain stage.

10. Is the XH‑A902 preamp suitable for professional studio use or microphone amplification?
    This module is designed for consumer line‑level signals. It is not suitable for directly amplifying a microphone because it lacks the necessary gain (typically 40 dB – 60 dB for mics) and a microphone preamplifier's balanced input and phantom power. For professional studio use, the NE5532 is often found in high‑end mixing consoles and outboard gear, but the XH‑A902 board is a simple, single‑ended implementation best suited for hi‑fi playback systems and consumer audio signal boosting.
