Waveshare USB to 4‑Channel RS485 Converter Industrial Serial Communication Module

USB TO 4CH RS485 Product Overview

The USB TO 4CH RS485 is an industrial-grade USB to 4-channel RS485 converter from Waveshare, expanding a single USB port into 4 independent RS485 bus interfaces. Powered by the CH344L + SP485EEN chipset, USB TO 4CH RS485 supports simultaneous, interference-free communication across all four channels. With onboard TVS surge suppression, resettable fuses, and protection diodes, it guards against surges, lightning, and ESD. USB TO 4CH RS485 supports baud rates from 1200bps to 460800bps and RS485 transmission distances up to 1200 meters (at low baud rates), with point-to-multipoint support for up to 32 nodes. Encased in an aluminum alloy enclosure with a matte anodized finish and CNC-machined openings, it supports both wall-mount and DIN-rail mount installation. Compatible with Windows, Mac, Linux, and Android operating systems, USB TO 4CH RS485 is widely used in industrial automation, power data acquisition, smart buildings, security monitoring, and agricultural data collection.

USB TO 4CH RS485 Core Features

1. Four fully independent RS485 channels for simultaneous parallel communication without mutual interference;
2. Onboard TVS transient suppressor, resettable fuse and protection diode, with 600W lightning protection & 15KV ESD anti‑static capability, surge & over‑current / over‑voltage resistance;
3. DIP‑switch selectable 120Ω terminal matching resistor for long‑distance communication;
4. Wide baud rate:1200bps‑460800bps, max RS485 transmission distance up to 1200 meters;
5. Supports up to 32 RS485 terminal nodes, use repeater for more than 16 nodes;
6. CNC sand‑blasted aluminum alloy enclosure for strong anti‑interference performance, compatible with DIN‑rail and wall‑mount installation;
7. Onboard PWR, ACT, TXD, RXD LED indicators for real‑time transmit/receive status monitoring;
8. Compatible with Windows 7/8/10/11, Mac OS, Linux, Android OS.

USB TO 4CH RS485 Application
USB TO 4CH RS485 is used in industrial automation control, PLC serial data acquisition, sensor network monitoring, smart instrument communication, building automation system, security monitoring serial networking, lab test & debugging, distributed multi‑node industrial communication projects.

USB TO 4CH RS485 Advantages and Highlights

Four Independent Channels, One Device for Multiple Uses: USB TO 4CH RS485 delivers 4 fully independent RS485 channels with simultaneous, crosstalk-free communication. One USB TO 4CH RS485 replaces four single-channel converters, significantly reducing equipment costs and space.

Triple Hardware Protection, Industrial-Grade Reliability: Onboard TVS, resettable fuses, and protection diodes, combined with 600W lightning/surge and 15KV ESD protection on RS485 interfaces, ensure stable operation in complex industrial electromagnetic environments.

1200m Long-Distance Transmission: USB TO 4CH RS485 supports RS485 communication reaching up to 1200 meters (at low baud rates), meeting large-scale cabling and data acquisition needs in factories, buildings, and campuses.

Switchable 120Ω Termination Resistor: Onboard 120Ω termination resistors with DIP switch control effectively suppress signal reflections and ensure long-distance communication quality.

Industrial Aluminum Alloy Enclosure: Aluminum alloy with matte anodized finish and CNC-machined openings provides mechanical strength, heat dissipation, and EMI shielding. USB TO 4CH RS485 supports wall-mount and DIN-rail mount for flexible field installation.

Cross-Platform Compatibility, Plug-and-Play: USB TO 4CH RS485 is fully compatible with Windows, Mac, Linux, and Android – no additional drivers required for quick deployment.

Why Choose QIXINWEI

Years of experience in the electronics industry. Trusted by global customers.

Massive In-Stock Inventory – Ready to ship promptly

BOM Matching Service – One-stop solution, save time

PCBA Customization – Professional engineering team creates tailor-made solutions based on your needs

Cost-Effective & Efficient – Better channel, better cost

A dedicated team makes your procurement smoother.

Contact us for BOM quotes or PCBA inquiries

FAQs:

1. Question: Can the 4 RS485 channels be used simultaneously?
   Answer: Yes, USB TO 4CH RS485 supports concurrent communication on 4 channels, and they operate independently, allowing connections to devices with different baud rates.

2. Question: What is the baud rate range?
   Answer: USB TO 4CH RS485's reliable communication speed ranges from 1200bps to 460800bps, meeting the needs of low-to-high speed industrial data acquisition.

3. Question: What is the module's power and current output?
   Answer: USB TO 4CH RS485 features a 500mA resettable fuse at the USB port. The overall USB TO 4CH RS485 is powered by USB, eliminating the need for an external power supply.

4. Question: What are the physical dimensions of the module?

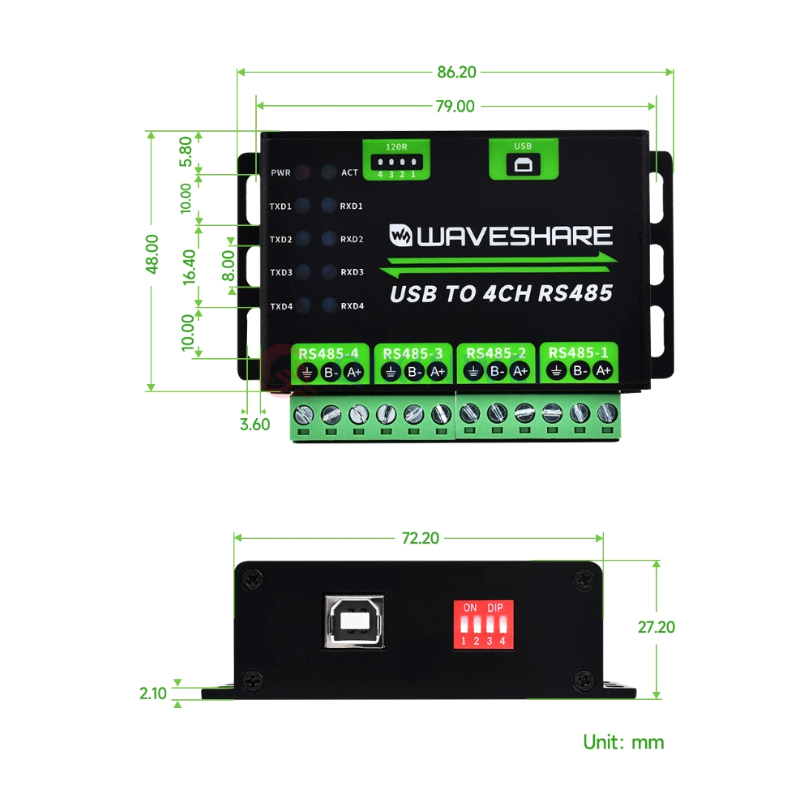

   Answer: USB TO 4CH RS485 dimensions are approximately 86.20mm × 48.00mm. USB TO 4CH RS485 features an aluminum alloy case and supports standard industrial DIN-rail and wall-mount installation.

5. Question: What is the purpose of the onboard 120R resistors?
   Answer: USB TO 4CH RS485's onboard 120R resistors minimize signal reflection during long-distance communication. If the transmission distance is long, enable the corresponding 120R resistor via the DIP switch to improve signal integrity.

6. Question: How many nodes can the module support?
   Answer: USB TO 4CH RS485 supports point-to-multipoint transmission and can connect up to 32 RS485 nodes. It is recommended to use repeaters if the node count exceeds 16.

7. Question: Does the module have a built-in Modbus protocol?
   Answer: No, USB TO 4CH RS485 only performs physical layer level conversion. The Modbus RTU protocol must be implemented in the host software or main controller.

8. Question: What are the main applications for this converter?
   Answer: USB TO 4CH RS485 is suitable for applications such as industrial control, PLC communication, power monitoring, or building automation where multiple RS485 devices need to be interfaced to a USB host.

9. Question: What do the LED indicators show?
   Answer: USB TO 4CH RS485 includes PWR (Power), ACT (Driver), and individual TXD (Transmit)/RXD (Receive) LEDs for each channel, making it easy to quickly diagnose communication status.

10. Question: What should I be careful about in environments with high interference?
    Answer: If strong electrical or variable frequency interference exists, consider the isolated version (e.g., USB TO 4CH RS485 (B)) which offers digital and power isolation, and use shielded twisted pair cables.
