Orange Pi 5 RK3588S 8GB 16GB 32GB SBC Gigabit Ethernet NVMe SSD

FAQ:

1. What is the Orange Pi 5 and its key specifications?

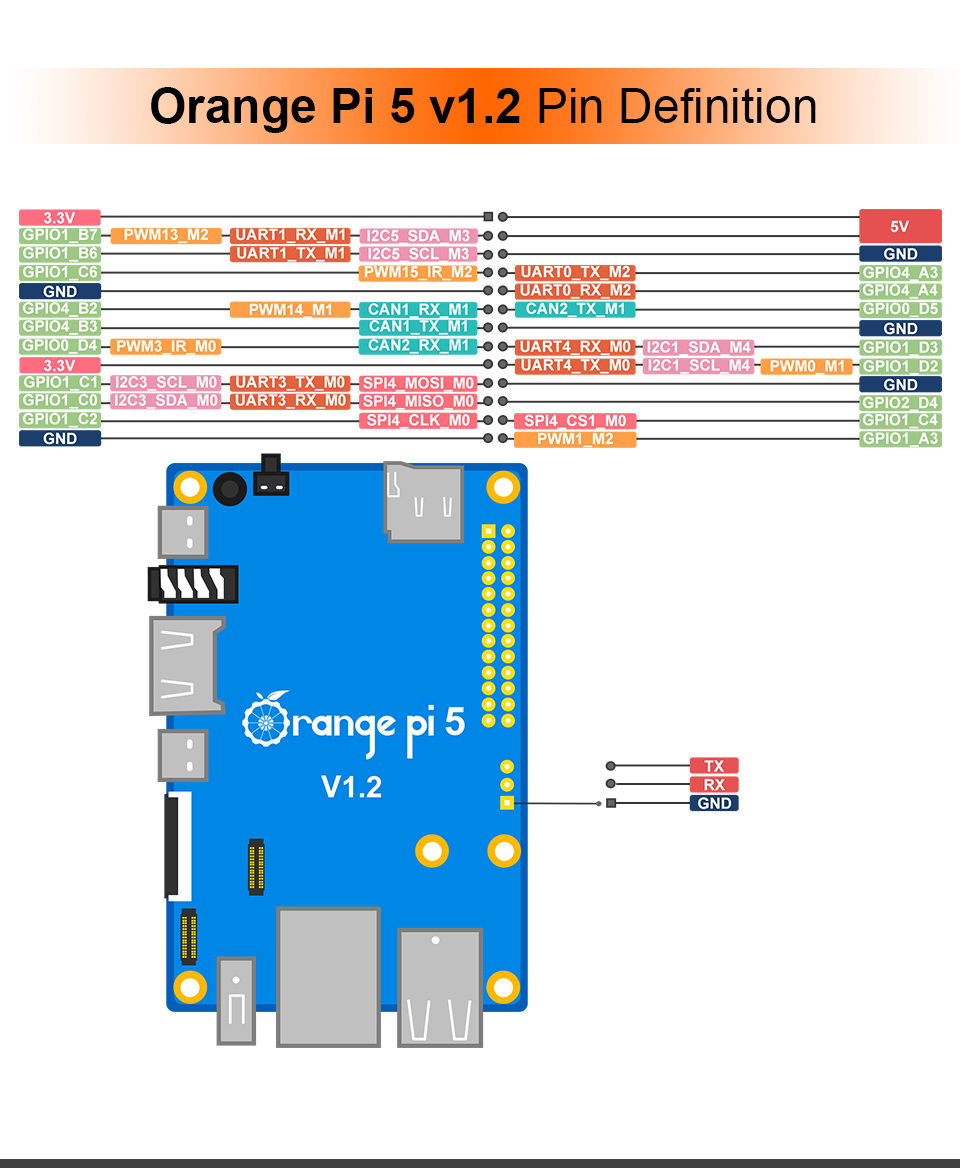

   The Orange Pi 5 is a high‑performance single‑board computer (SBC) built around the Rockchip RK3588S system‑on‑chip. It features an octa‑core CPU (4× Cortex‑A76 at up to 2.4 GHz and 4× Cortex‑A55 at up to 1.8 GHz), an ARM Mali‑G610 MP4 GPU, and a 6 TOPS (INT8) NPU for AI acceleration. Memory options include 8 GB, 16 GB, or 32 GB LPDDR4X RAM. Storage is provided via a microSD card slot, an eMMC socket, and a high‑speed M.2 M‑Key slot for NVMe SSDs (PCIe 3.0 x4). The board offers HDMI 2.1 (up to 8Kp60), Gigabit Ethernet, USB 3.0 and USB 2.0 ports, and a 40‑pin GPIO header. It is designed for AI edge computing, software development, multimedia, and industrial applications.

2. How does the RK3588S differ from the full RK3588?
   The RK3588S is a cost‑optimized variant of the flagship RK3588, using the same 8 nm process and identical CPU, GPU, and NPU. The main differences are a reduced set of high‑speed interfaces: the RK3588S has fewer PCIe lanes (typically a single PCIe 3.0 x4 instead of multiple PCIe 3.0/2.0 lanes), does not support multi‑channel SATA, and may have a smaller pin count. For most single‑board applications, the RK3588S provides identical processing and AI performance at a lower cost. The Orange Pi 5 uses the RK3588S, while the Orange Pi 5 Plus uses the full RK3588 with more expandability.

3. What memory options are available, and which one should I choose?
   The Orange Pi 5 is offered in 8 GB, 16 GB, and 32 GB LPDDR4X configurations. 8 GB is sufficient for most embedded applications, light desktop use, and media streaming. 16 GB provides ample headroom for multitasking, virtual machines, and complex development work. 32 GB is ideal for memory‑intensive workloads such as large AI models, databases, and heavy compilation tasks. All variants have the same CPU, GPU, and NPU performance; the only difference is RAM capacity. For a responsive desktop experience and future‑proofing, 16 GB is the sweet spot.

4. What are the NPU capabilities and what AI frameworks are supported?
   The built‑in 6 TOPS (INT8) NPU accelerates deep‑learning inference for models converted to the RKNN format. Supported frameworks include TensorFlow, TensorFlow Lite, PyTorch, ONNX, and Caffe. The NPU can handle object detection, face recognition, image classification, and natural‑language processing at very low power. Rockchip provides a RKNN SDK with tools to quantize and deploy models. For edge AI applications, the Orange Pi 5 offers significant performance without the need for a separate accelerator.

5. What storage options are available, and how fast is the NVMe slot?
   You can boot from a microSD card, an eMMC module (socket on board), or an NVMe SSD via the M.2 M‑Key slot. The NVMe slot supports PCIe 3.0 x4, delivering read/write speeds up to ~3500 MB/s — dramatically faster than microSD. Booting from an NVMe SSD gives desktop‑class responsiveness. The M.2 slot accepts 2230, 2242, 2260, and 2280 form factors. An external USB drive can also be used for additional storage.

6. What display outputs and maximum resolutions does the Orange Pi 5 support?
   The board features HDMI 2.1 output capable of 8Kp60 and 4Kp120. It also provides a MIPI‑DSI connector for embedded LCD panels and a USB‑C port with DP alt‑mode that can output DisplayPort signals. The GPU supports OpenGL ES 3.2, Vulkan 1.2, and OpenCL 2.2, ensuring smooth graphics for desktop environments and 3D applications. This makes the Orange Pi 5 ideal for digital signage, video walls, and media centers.

7. What operating systems are supported on the Orange Pi 5?
   Officially supported OS images include Orange Pi OS (based on Android 12 and Arch Linux), Ubuntu (Jammy), and Debian (Bullseye/Bookworm). Community distributions such as Armbian, DietPi, and Android TV are also available. All images can be downloaded from the Orange Pi website and flashed to a microSD card, eMMC, or NVMe SSD. The board also supports booting from USB and network (PXE).

8. Does the Orange Pi 5 have built‑in Wi‑Fi and Bluetooth?
   The standard Orange Pi 5 does not include on‑board Wi‑Fi or Bluetooth. However, it provides an M.2 E‑Key slot (with PCIe 2.0 x1 and USB 2.0) specifically for adding an optional Wi‑Fi 6 / Bluetooth 5.0 module. This modular approach gives you the flexibility to choose the wireless card that best suits your project. The board also has Gigabit Ethernet for wired networking.

9. What power supply does the Orange Pi 5 require?
   The board is powered through a USB‑C PD port and requires a 5 V/4 A (20 W) power adapter with Power Delivery support. A standard 5 V/3 A supply may work for light loads but can cause instability when using power‑hungry NVMe SSDs or multiple USB devices. The official Orange Pi power supply is recommended for reliable operation. The board also features a RTC battery connector to keep the clock running when powered off.

10. What are the most typical applications for the Orange Pi 5?
    Thanks to its powerful CPU, 6 TOPS NPU, and fast NVMe storage, the Orange Pi 5 excels in AI edge computing (object detection, smart cameras), software development workstations, high‑performance media centers (8K), digital signage, network‑attached storage (NAS), cloud servers, and industrial control. It is an excellent alternative to the Raspberry Pi 5 for projects that demand higher processing power, more RAM, and AI acceleration.
