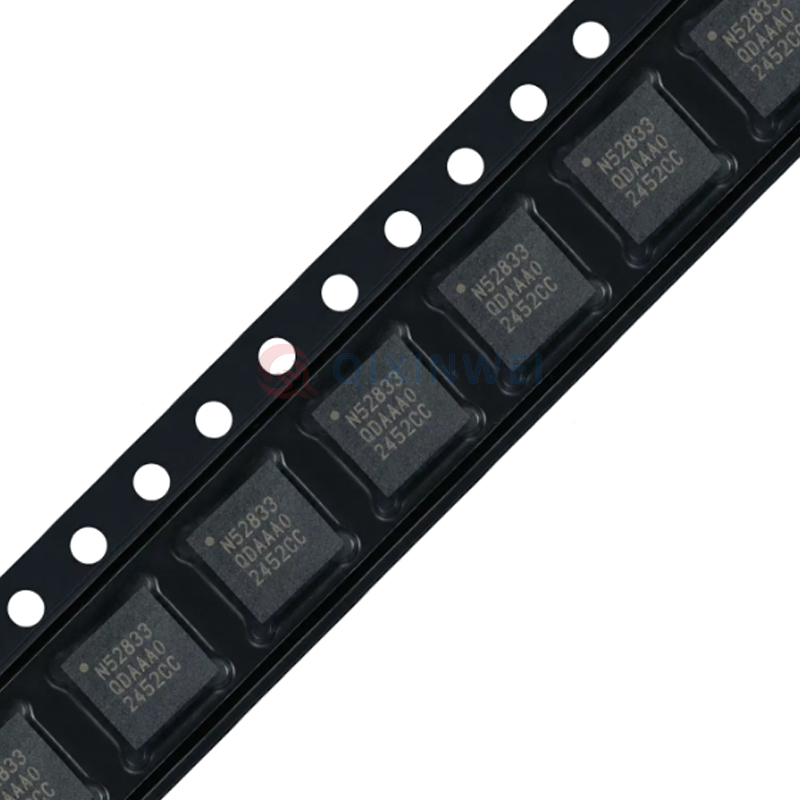

NRF52833-QDAA-R QFN-40 Bluetooth 5.3 Multi-protocol 2.4GHz Low Power Wireless SoC Chip

NRF52833-QDAA-R Product Overview

NRF52833-QDAA-R is a high-performance multi-protocol wireless SoC of Nordic nRF52 series in QFN-40 (5×5mm) package. It adopts 64MHz ARM Cortex-M4F core with FPU, supports Bluetooth 5.3, BLE, Bluetooth Mesh, NFC, Thread and Zigbee. It integrates Bluetooth direction finding and supports extended temperature up to 105℃, ideal for industrial and consumer IoT wireless devices.

NRF52833-QDAA-R Core Features

①64MHz ARM Cortex-M4F core with FPU, 512KB Flash and 128KB RAM

②2.4GHz RF radio with Bluetooth AoA/AoD direction finding, +8dBm TX power, -103dBm long-range sensitivity

③Built-in 128-bit AES hardware encryption, secure boot & firmware protection

④1.7V~5.5V wide supply voltage, integrated DC-DC & LDO regulators

⑤Rich peripherals: USB2.0 full speed, 12-bit ADC, SPI, I2C, UART, PDM, I2S, PWM, QDEC

⑥Compact QFN-40 5×5mm package, OTA DFU supported, operating temp -40℃~+105℃

NRF52833-QDAA-R Applications

Asset tracking & positioning, Bluetooth Mesh smart lighting, industrial IoT sensors, premium wearables, wireless mouse & keyboard, smart home controllers, NFC interactive devices, medical monitoring modules, Bluetooth direction-finding beacons.

NRF52833-QDAA-R Advantages

The core advantage of the NRF52833-QDAA-R lies in its combination of 105°C extended temperature range and multiprotocol concurrency. It supports concurrent operation of multiple protocols in the 2.4GHz band — such as Bluetooth LE together with Bluetooth Mesh, Thread, or Zigbee — making it ideal for professional lighting and asset tracking in commercial and industrial applications.

105°C Extended Temperature Qualification: Operating from -40°C to +105°C, one of the few nRF52 Series models qualified for 105°C operation, ideal for professional lighting and industrial environments.

Multiprotocol Concurrency, One Chip for Multiple Uses: Supports Bluetooth 5.4, Bluetooth Mesh, Thread, Zigbee, NFC, and 2.4GHz proprietary protocols with concurrent operation in the 2.4GHz band.

Bluetooth Direction Finding: Supports Bluetooth Direction Finding for asset tracking and Real-Time Location Systems (RTLS).

1:4 RAM-to-Flash Ratio & +8dBm Output Power: The nRF52833-QDAA-R features a 1:4 RAM-to-Flash ratio and +8dBm output power, suitable for advanced wearables or smart home applications where robust coverage is important.

Mature nRF Connect SDK Ecosystem: Complete nRF Connect SDK with Zephyr RTOS, protocol stacks, samples, and hardware drivers, with support for the nRF52833 DK development kit.

Why Choose QIXINWEI

Years of experience in the electronics industry. Trusted by global customers.

Massive In-Stock Inventory – Ready to ship promptly

BOM Matching Service – One-stop solution, save time

PCBA Customization – Professional engineering team creates tailor-made solutions based on your needs

Cost-Effective & Efficient – Better channel, better cost

A dedicated team makes your procurement smoother.

Contact us for BOM quotes or PCBA inquiries

FAQs:

1. Question: What is the nRF52833-QDAA-R chip?
   Answer: It is an ultra-low-power multiprotocol wireless SoC from Nordic Semiconductor, built around a 64 MHz Arm Cortex-M4 with FPU, supporting Bluetooth 5.4, Bluetooth Mesh, Thread, Zigbee, and NFC.

2. Question: What is the core processor and frequency?
   Answer: It features a 64 MHz Arm Cortex-M4 processor with a floating-point unit (FPU), efficiently handling complex wireless protocols and user application code.

3. Question: What is the memory capacity?
   Answer: It includes 512 KB of Flash program memory and 128 KB of RAM. The 1:4 RAM-to-Flash ratio is suitable for running large applications and protocol stacks.

4. Question: Which wireless protocols does it support?
   Answer: It supports Bluetooth 5.4 (including 2 Mbps, Long Range, and Direction Finding), Bluetooth Mesh, IEEE 802.15.4 (Thread and Zigbee), NFC-A tag, and 2.4 GHz proprietary protocols.

5. Question: What is the purpose of the Bluetooth Direction Finding feature?
   Answer: It supports Bluetooth 5.1 Angle of Arrival (AoA) and Angle of Departure (AoD). With ample memory, it can serve as both receiver and transmitter simultaneously, ideal for Real-Time Locating Systems (RTLS) and Indoor Positioning Systems (IPS).

6. Question: What is the operating temperature range?
   Answer: It supports an extended industrial temperature range of -40°C to +105°C, higher than the nRF52840's +85°C, making it suitable for high-temperature applications such as professional lighting.

7. Question: What is the operating voltage range?
   Answer: The supply voltage range is 1.7V to 5.5V, allowing power from coin cells, rechargeable batteries, or USB directly. It integrates a DC-DC regulator and automatic power management system.

8. Question: How is the RF performance?
   Answer: It offers +8 dBm maximum TX power and -95 dBm RX sensitivity at 1 Mbps. Combined with Bluetooth 5 Long Range, it provides robust connection coverage.

9. Question: What hardware security features are available?
   Answer: It integrates a 128-bit AES/ECB/CCM/AAR hardware encryption accelerator with support for secure boot and key storage, ensuring wireless communication and data security.

10. Question: What are the main application scenarios?
    Answer: It is widely used in professional lighting, asset tracking, Real-Time Locating Systems (RTLS), advanced wearables, smart home, gaming solutions, and industrial IoT applications.
