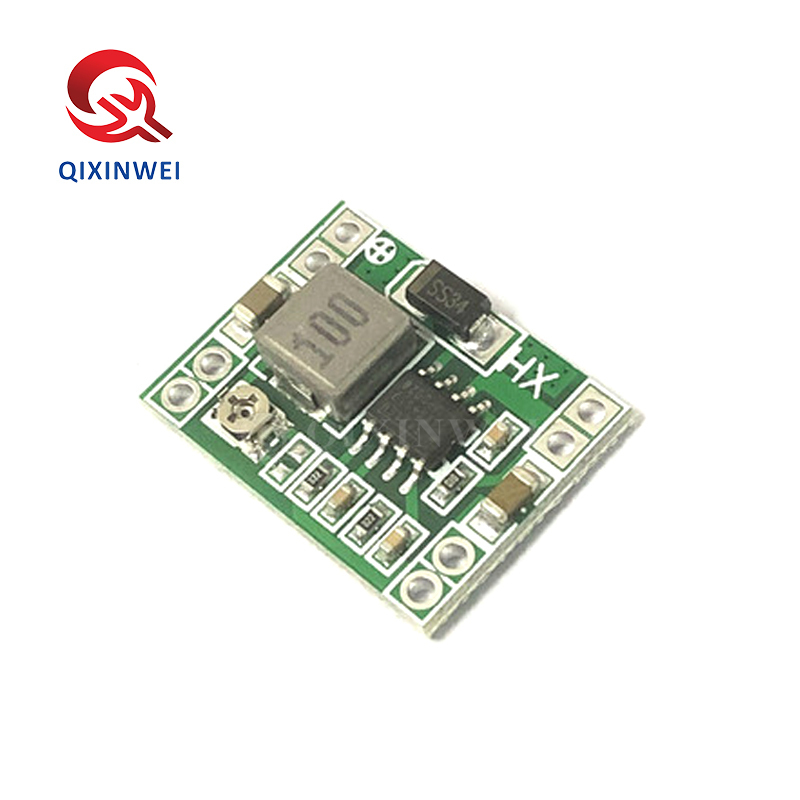

MP1584EN DC-DC Step Down Module 24V to 12V 9V 5V 3V 3A Adjustable Buck Converter

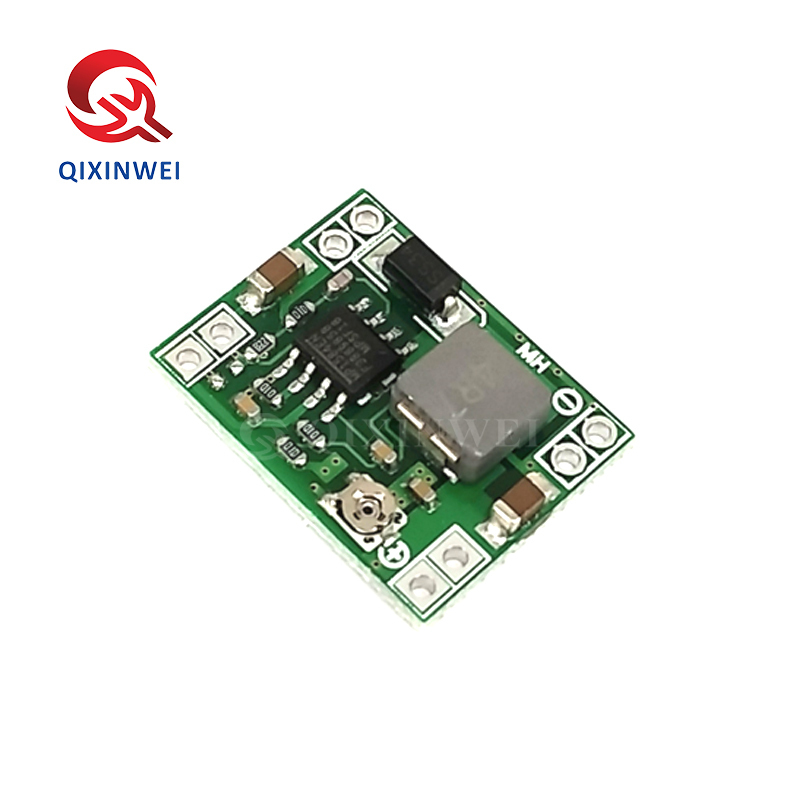

MP1584EN step-down module, input 6-30V, output adjustable 1.8-28V, max 3A. Onboard multi-turn potentiometer, power LED. Converts 24V to 12V/9V/5V/3.3V with 92% efficiency. Compact size 22×17mm. Ideal for car power supply, industrial equipment, MCU power, battery regulation

MP1584EN DC-DC Step Down Module Application features:

◆ Main Chip
MP1584EN (MPS, SOP-8 package)

◆ Input Voltage
DC 6V ~ 30V (7V-28V recommended)

◆ Output Voltage
DC 1.8V ~ 28V (adjustable, requires 1.5V dropout)

◆ Output Current

• Max 3A (peak)

• 2A recommended (continuous)

◆ Output Power
15W typical / 24W max

◆ Switching Frequency
1.5MHz

◆ Conversion Efficiency
Up to 92%

◆ Voltage Adjustment
Onboard 3296W multi-turn potentiometer

◆ Indicator
Red power LED

◆ Module Dimensions
Approx. 22mm × 17mm × 4mm

◆ Protection
Over-current, thermal protection

MP1584EN DC-DC Step Down Module Typical Applications

• 24V to 12V (car devices)

• 24V to 9V (router/camera)

• 24V to 5V (MCU/sensors)

• 24V to 3.3V (ESP8266/ESP32)

• Industrial equipment step-down

• Battery regulation

MP1584EN DC-DC Step Down Module Key Advantages

• Compact size (thumb-sized)

• Wide input voltage range

• Continuously adjustable output

• 1.5MHz high frequency, low ripple

• High efficiency, low heat

• Cost-effective

Why Choose QIXINWEI

Years of experience in the electronics industry. Trusted by global customers.

Massive In-Stock Inventory – Ready to ship promptly

BOM Matching Service – One-stop solution, save time

PCBA Customization – Professional engineering team creates tailor-made solutions based on your needs

Cost-Effective & Efficient – Better channel, better cost

A dedicated team makes your procurement smoother.

Contact us for BOM quotes or PCBA inquiries

Notes : Since the prices of the electronic components are unstable, the prices we show are for reference only. Please confirm the recent prices with us before ordering!

Lead Time : Usually, your parcel will be arranged within 7 days after finishing payment. We'll send it more quickly if it's an urgent order. Thanks for your understanding!

Quantity(Pieces)	1 ~ 30000	30001 ~ 300000	> 300000
Est. Time(days)	5	7	To be negotiated
