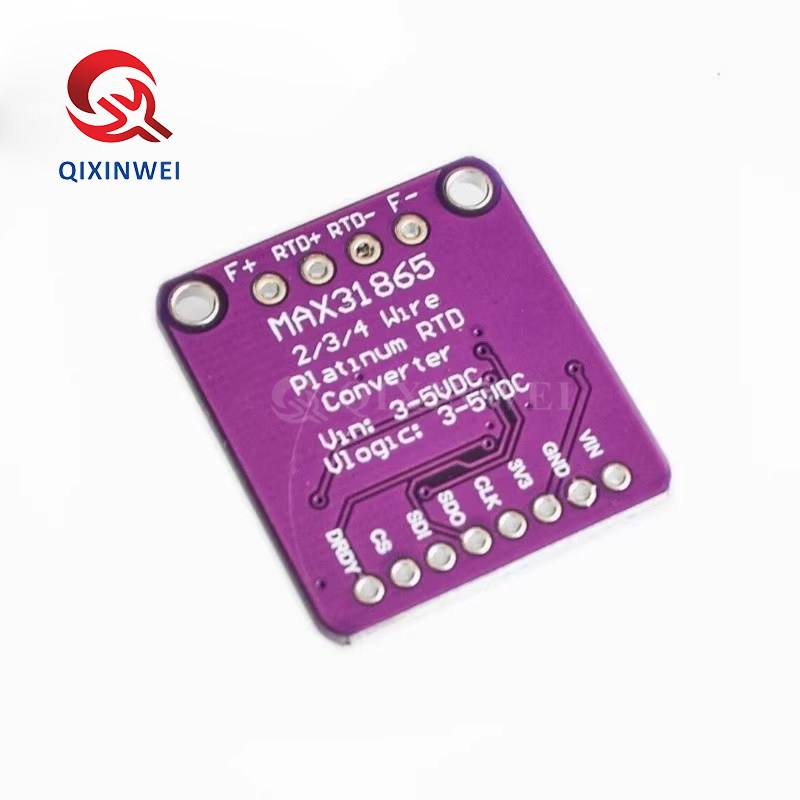

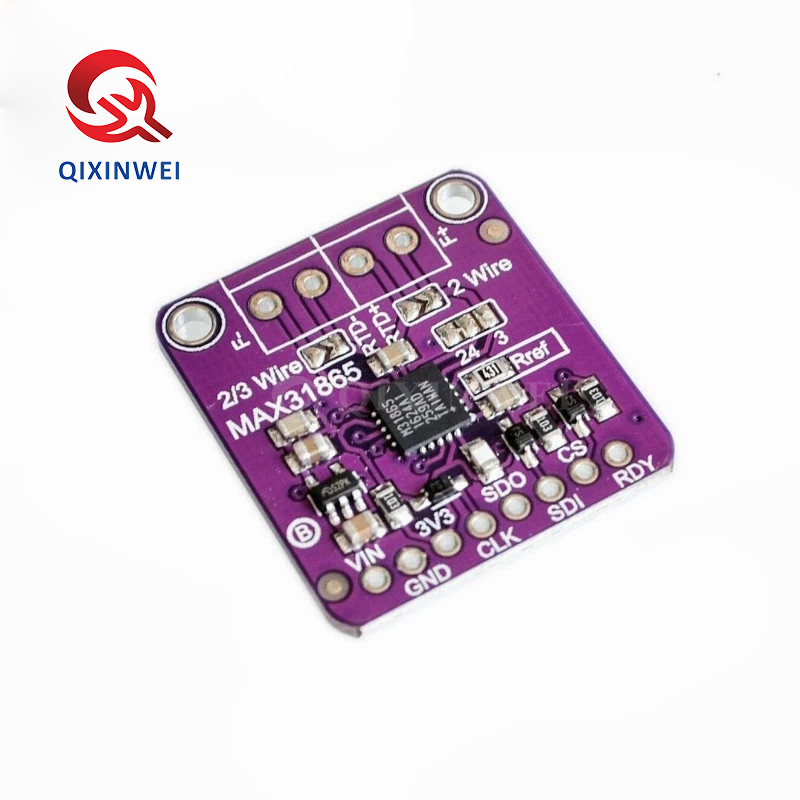

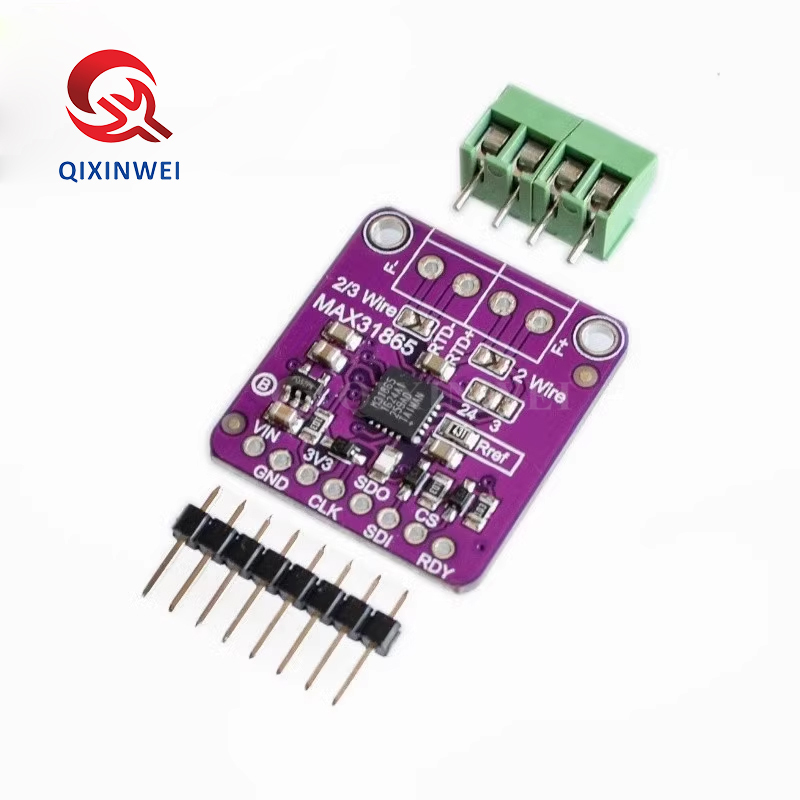

MAX31865 PT100 PT1000 RTD Temperature Sensor Module High Accuracy Detector

MAX31865 platinum RTD temperature sensor module supports PT100 and PT1000, 2/3/4-wire probes. 15-30 bit adjustable resolution, SPI interface, -200°C to +850°C range, up to 0.5°C accuracy. Onboard 3.3V/5V regulator. Ideal for industrial temperature measurement, medical devices, environmental monitoring, lab instruments, 3D printer heat beds

MAX31865 Module Application features:

◆ Main Chip
MAX31865 (Maxim/ADI, RTD-to-Digital converter)

◆ Supported Probe Types

• PT100 (100Ω @ 0°C)

• PT1000 (1000Ω @ 0°C)

◆ Supported Wiring Methods

• 2-wire RTD

• 3-wire RTD (recommended)

• 4-wire RTD

◆ Measurement Range
-200°C ~ +850°C (depends on probe)

◆ Measurement Accuracy

• 0.5°C typical

• 0.3°C with high-precision calibration

◆ Resolution
15-bit to 30-bit (software adjustable)

◆ Communication Interface
SPI (up to 5MHz)

◆ Operating Voltage
DC 3V ~ 5.5V

◆ Onboard Resources

• 3.3V/5V regulator circuit

• Reference resistor (430Ω or 4000Ω)

• Jumper for PT100/PT1000 selection

• Jumper for 2/3/4-wire selection

◆ Fault Detection

• Short circuit detection

• Open circuit detection

• Out-of-range detection

◆ Sampling Rate
50Hz/60Hz rejection for power line noise

◆ Typical Applications

• Industrial temperature monitoring

• Medical equipment (incubators)

• Environmental weather stations

• Laboratory precision thermometry

• 3D printer heat bed / hot end

• Heater control systems

• Food processing temperature monitoring

• Automotive engine temperature

Why Choose QIXINWEI

Years of experience in the electronics industry. Trusted by global customers.

Massive In-Stock Inventory – Ready to ship promptly

BOM Matching Service – One-stop solution, save time

PCBA Customization – Professional engineering team creates tailor-made solutions based on your needs

Cost-Effective & Efficient – Better channel, better cost

A dedicated team makes your procurement smoother.

Contact us for BOM quotes or PCBA inquiries

Notes : Since the prices of the electronic components are unstable, the prices we show are for reference only. Please confirm the recent prices with us before ordering!

Lead Time : Usually, your parcel will be arranged within 7 days after finishing payment. We'll send it more quickly if it's an urgent order. Thanks for your understanding!

Quantity(Pieces)	1 ~ 30000	30001 ~ 300000	> 300000
Est. Time(days)	5	7	To be negotiated

FAQ:

1. What is the MAX31865 RTD module and its key specifications?
   This module is a high‑accuracy RTD‑to‑digital converter built around the Maxim MAX31865 chip, designed to interface with PT100 or PT1000 platinum resistance temperature detectors. It features a 15‑bit ADC that provides a temperature resolution of 0.03125 °C, supports 2‑wire, 3‑wire, and 4‑wire RTD connections, and communicates over a standard SPI interface. The module typically includes an on‑board precision reference resistor (commonly 430 Ω for PT100, or 4.3 kΩ for PT1000), 3.3 V logic levels (with on‑board LDO allowing 5 V power input), and screw terminals for easy sensor attachment. It can measure temperatures from ‑200 °C to +850 °C (depending on the RTD probe), with excellent accuracy and noise rejection.

2. What is the difference between PT100 and PT1000, and which one should I use with this module?
   A PT100 has a resistance of 100 Ω at 0 °C, while a PT1000 has 1000 Ω at 0 °C. PT100 is the most common industrial standard, while PT1000 is preferred for battery‑powered applications because it draws 10× less current for the same excitation, reducing self‑heating and power consumption. The MAX31865 module can work with either, but the on‑board reference resistor must match the RTD type: a 430 Ω reference for PT100, or a 4.3 kΩ reference for PT1000. Some modules let you change this resistor. If your module is pre‑configured for one type, you must use the corresponding sensor or replace the reference resistor.

3. How do I connect a 2‑wire, 3‑wire, or 4‑wire RTD to the MAX31865 module?
   The module provides screw terminals for the RTD. 2‑wire: connect the two RTD wires to F+ (Force+) and RTD+ (or F‑ and RTD‑), and jumper F+ to RTD+ and F‑ to RTD‑. This is the simplest but least accurate because it includes lead resistance in the measurement. 3‑wire: connect one wire to F+, one wire to F‑, and the third wire to RTD+ or RTD‑ (with the corresponding jumper). This compensates for lead resistance. 4‑wire: connect F+ and F‑ to one pair of wires, and RTD+ and RTD‑ to the other pair (no jumpers). This is the most accurate method, eliminating lead resistance entirely. Always refer to the module’s silkscreen.

4. How do I connect the MAX31865 module to an Arduino or ESP32?
   Wiring uses the SPI bus. Connect: VIN → 5 V (module has an on‑board 3.3 V regulator), GND → GND, SCK → SCK (Arduino D13, ESP32 GPIO18), SDO (MISO) → MISO (Arduino D12, ESP32 GPIO19), SDI (MOSI) → MOSI (Arduino D11, ESP32 GPIO23), and CS → any digital pin (e.g., D10). The RDY (Ready) pin is optional; it signals when a new conversion is complete. The module’s logic is 3.3 V, so for a 5 V Arduino, direct connection works because the MAX31865 inputs are 5 V tolerant. However, for safety, a logic‑level converter on the SPI lines is recommended. For ESP32, direct connection is fine.

5. What Arduino libraries are available for the MAX31865, and how do I read the temperature?
   The most popular library is the Adafruit MAX31865 library, installable from the Arduino Library Manager. It provides functions to configure the sensor type (PT100/PT1000), number of wires, and easily read temperature in Celsius or Fahrenheit. After initialising the sensor with max.begin(MAX31865_4WIRE) (or _3WIRE/_2WIRE), you simply call max.temperature(RTD_NOMINAL, REF_RESISTOR) to get a reading. The library handles all SPI communication, fault detection, and linearisation. Examples are included for a quick start.

6. What is the accuracy of the MAX31865 module, and how can I calibrate it?
   The MAX31865 itself delivers an ADC resolution of 15 bits, corresponding to 0.03125 °C. The total system accuracy depends on the RTD probe and the reference resistor. Most PT100 probes are available in Class A (±0.15 °C) or Class B (±0.3 °C). With a 0.1 % tolerance reference resistor, the module can achieve an overall accuracy better than ±0.5 °C over the ‑40 °C to +125 °C range. For even higher precision, you can perform a single‑ or two‑point calibration by placing the probe in an ice‑water bath (0 °C) or a known reference temperature and applying a software offset.

7. Can the MAX31865 module be used with a 5 V microcontroller like an Arduino Uno? Are its I/Os 5 V tolerant?
   Yes. The module has an on‑board 3.3 V LDO regulator, so you can power it from the Arduino’s 5 V pin (connect to VIN). The MAX31865’s digital I/O pins are 5 V tolerant according to the datasheet, meaning they can accept 5 V logic levels without damage. However, the SDO (MISO) output is driven at 3.3 V, which is still recognised as a valid HIGH by 5 V Arduino inputs. For the most reliable operation, especially with long wires, a logic‑level converter on the SPI lines is a good practice, but many projects operate reliably without one.

8. What is the power supply requirement and typical power consumption of the MAX31865 module?
   The module operates on a 3.3 V DC supply, but thanks to the on‑board regulator, you can feed it 5 V on the VIN pin. The current consumption is very low — typically ~1.5 mA during conversion. When not actively converting, it can be put into a shutdown mode that reduces consumption to < 10 µA. This makes it highly suitable for battery‑powered precision data loggers and remote sensor nodes. The module’s RTD excitation current is also very low, especially with PT1000 sensors, further saving power.

9. How does the MAX31865 compare to using a thermocouple or a simple thermistor?
   RTDs (with the MAX31865) offer the best accuracy and long‑term stability over a wide temperature range (‑200 °C to +850 °C), making them the choice for scientific and industrial precision measurement. Thermocouples cover a much wider temperature range (up to +1800 °C) and are more rugged, but are less accurate (typically ±1 °C to ±2 °C). Thermistors are cheap and very sensitive in a narrow range, but non‑linear and not suitable for extreme temperatures. The MAX31865 module provides a digital, noise‑immune, easy‑to‑interface solution for RTDs, eliminating the complex analog front‑end that RTDs usually require.

10. What are the most typical applications for the MAX31865 RTD temperature sensor module?
    It is widely used in industrial process control, medical incubators, laboratory thermal chambers, HVAC systems, automotive coolant monitoring, precision chemical reactors, and environmental data logging. Any application that requires highly accurate and repeatable temperature measurement over a broad range benefits from this module. Its digital SPI output and small form factor make it easy to embed in both prototype and production systems.
