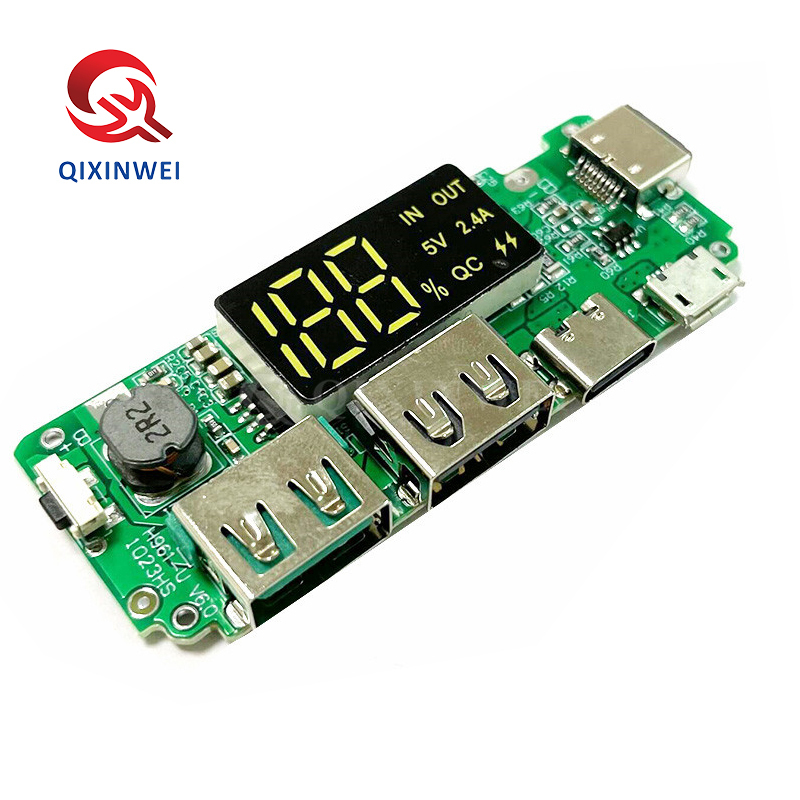

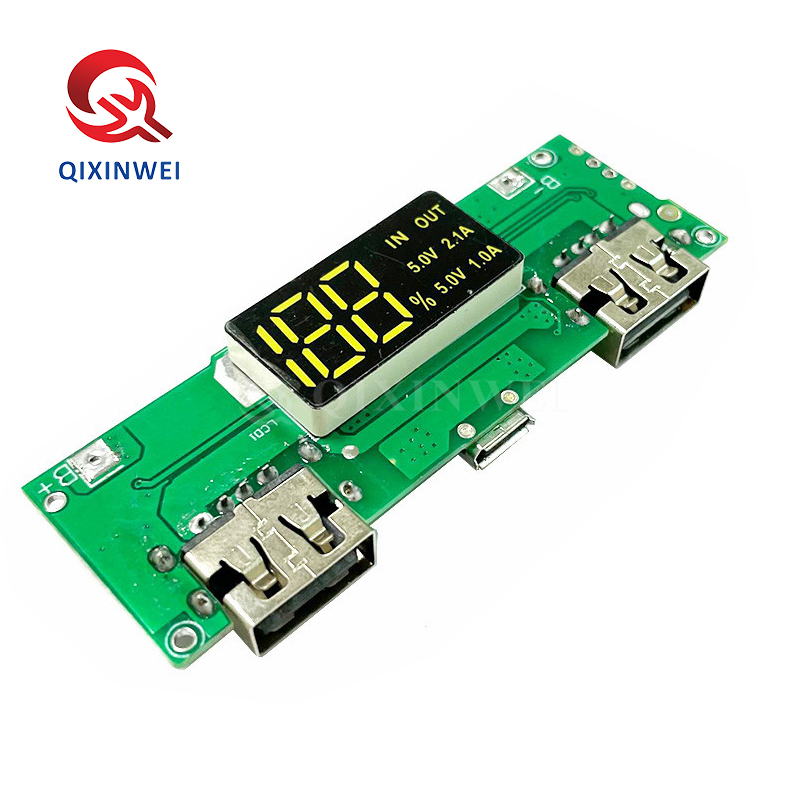

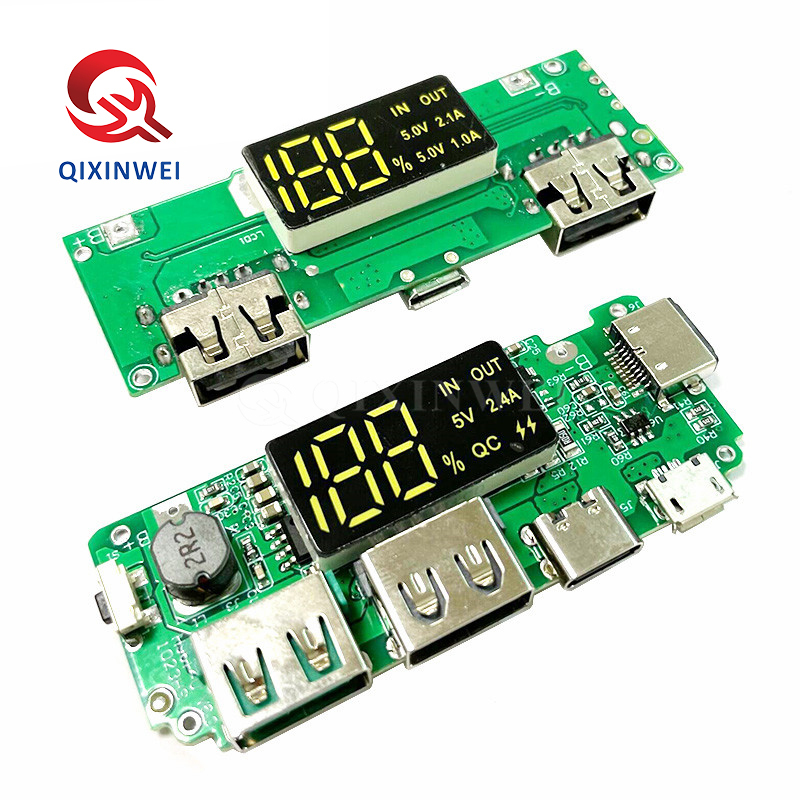

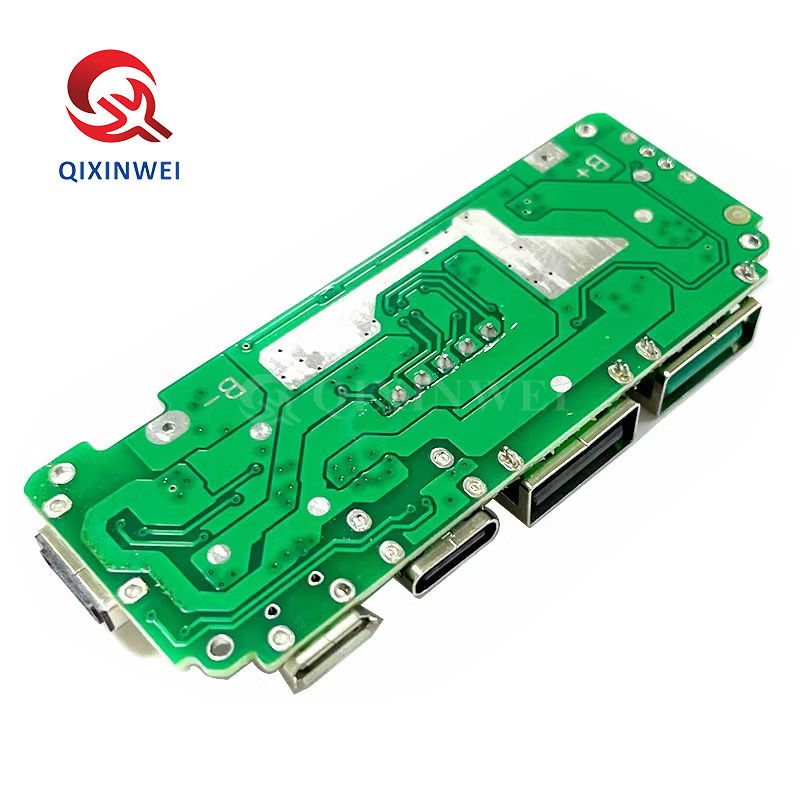

LED Dual USB 5V 2.4A Type-C 18650 Charging Module Power Bank Board

LED dual USB charging module with Micro/Type-C input, 18650 battery charge/discharge. Dual USB 5V/2.4A output, LED digital display shows battery level. Built-in overcharge, overdischarge, overcurrent, short circuit protection. 90% efficiency, compact size for DIY power bank

18650 Charging Module Application Features

Core Functions

◆ Charge & Discharge
Supports 18650 Li-ion battery charging and 5V boost output

◆ Input Ports

• Type-C (primary)

• Micro USB

◆ Output Ports
Dual USB-A (charge 2 devices simultaneously)

Electrical Specifications

◆ Input Voltage
5V via Micro/Type-C

◆ Output Voltage
Regulated 5V DC

◆ Output Current
Up to 2.4A total (shared)

◆ Charge Current
~1A typical

◆ Efficiency
Up to 90%

Protection Features

◆ Overcharge
4.2V±0.05V cutoff

◆ Overdischarge
3.0V±0.1V cutoff

◆ Other Protection
Overcurrent, short circuit

LED Display

◆ Display Type
LED digital screen

◆ Display Content
Battery level percentage

◆ Operation Logic
Auto-on during charge/discharge, sleep after ~30 sec

Physical Specifications

◆ Battery Type
Single or parallel 18650 Li-ion

◆ Battery Connection
B+/B- solder pads

◆ PCB Size
Approx. 55×19×8mm

Applications

◆ Target Use
DIY power bank projects

◆ Typical Uses

• Portable power bank DIY

• 18650 battery charger

• USB power supply

• Electronics projects
