The AC-DC 350W Power Supply Module Guide: 12V/24V/48V Open-Frame Design, Wide Input, and How to Select for Industrial Applications

If you are selecting an AC-DC power supply for a new industrial or embedded design, the first question is not “which wattage is highest” — it is “what does this power supply actually have to survive.” An industrial control cabinet and a telecom equipment rack look nearly identical on a spec sheet and behave nothing alike after years of continuous operation. Get that distinction right and the rest of the selection is mostly arithmetic.

What the MP-H350SXX-PS Series is, in one paragraph

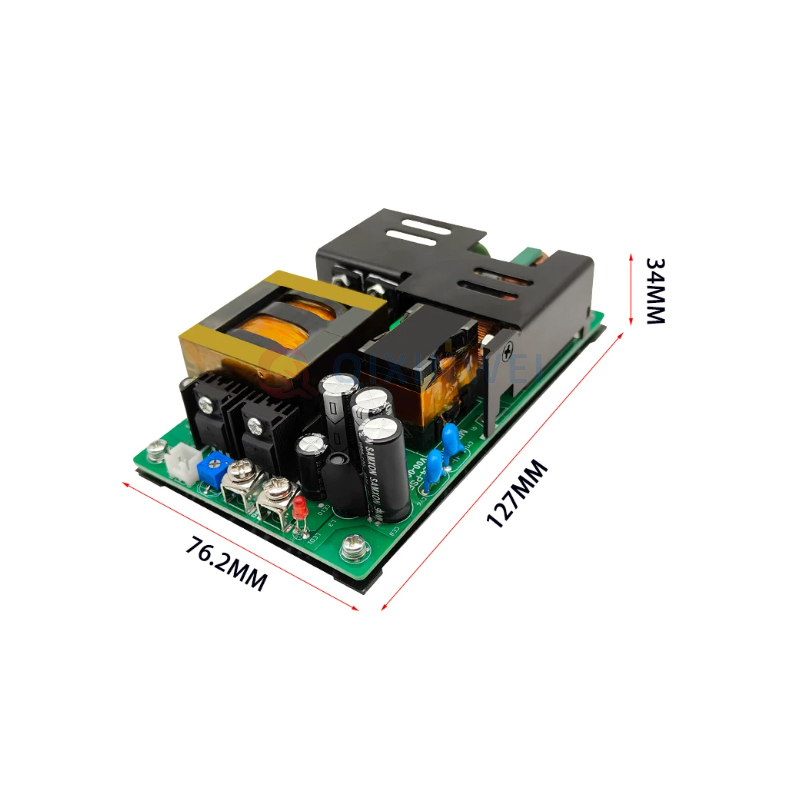

The MP-H350SXX-PS series is a 350W AC/DC open-frame switching power supply with a wide input range of 85-264VAC / 127-370VDC (AC/DC dual use). It is available in six output voltages — 12V, 19V, 24V, 36V, 48V, and 54V — each with a defined voltage adjustment range (e.g., 11.3-13.6V for the 12V model, 21.6-27.5V for the 24V model). It features active PFC, up to 94% efficiency, and a compact 127 x 76.2 x 34 mm (5" x 3") footprint. The series is designed for industrial automation, machinery, industrial control systems, communication equipment, and electronic instruments.

What the power supply actually has to survive

A power module in production is not a bench prototype. It is a system that has to hold up when the environment stops being friendly.

· Thermal derating is the real spec. The series delivers 250W with natural convection cooling, and 350W with 20.5CFM forced air cooling. The difference is not a marketing number — it is the difference between a unit that runs at 70°C ambient and one that shuts down. If your enclosure has no fan, plan for 250W and design the aluminum plate mounting accordingly.

· Wide input, real-world tolerance. The 85-264VAC input range handles grid instability that would trip a narrower supply. The 100A/80us inrush current limit and 70-80VAC input undervoltage protection mean the module does not just survive brownouts — it recovers from them automatically.

· Protection that actually recovers. Output overcurrent (110-150% hiccup mode), output overvoltage (110-130% hiccup mode), short circuit (hiccup mode with auto-recovery), and over-temperature (shutdown with restart) — the module protects itself and the downstream electronics without requiring a service call.

· Connections that match production tooling. The CH3.96-5P (AC input) and YZ-28 (DC output) terminals, plus the XH-2A fan connector, are standard interfaces. The 12V/0.5A fan auxiliary supply means you can power a cooling fan directly from the module, simplifying the thermal design.

Where the MP-H350SXX-PS fits — and where it doesn’t

The MP-H350SXX-PS is the right choice when the product needs a regulated, high-efficiency DC rail from an AC mains input, in a compact open-frame format that can be mounted inside a control cabinet or equipment chassis. Industrial control panels, machine tools, communication base stations, and test instruments all fit.

It is the wrong choice when the product needs a fully enclosed IP-rated supply, or when the load profile requires more than 250W without forced air. For those cases, select a higher-power enclosed unit or design active cooling into the enclosure from the start.

The selection checklist we actually use

· Output voltage and current. Match the nominal voltage to your load, then check the adjustment range. A 24V rail that can be trimmed to 27.5V gives headroom for long cable runs and voltage drop.

· Cooling method. Natural convection (250W) or forced air (350W)? This determines the enclosure design and the mounting plate requirement. The datasheet specifies an aluminum plate for full derating — do not skip it.

· Efficiency at your load point. The 93-94.5% typical efficiency is measured at full load. If your product idles at 20% load, confirm the light-load efficiency meets your standby power budget.

· Mounting and thermal interface. The module requires an external aluminum plate (minimum 400 x 400 mm recommended for full derating) and thermal grease on the bottom surface. Plan the mechanical integration before the electrical design.

At QIXINWEI (Shenzhen Qixinwei Technology Co., Ltd.), we have spent 13 years supplying AC-DC power modules, embedded boards, and the broader electronic component ecosystem alongside full PCBA assembly. When a customer sends us a BOM, the conversation usually starts with “is this power module actually available, and does it meet the derating requirements for the enclosure” — not with a quote. If you are mid-selection and want a second pair of eyes on the power supply, thermal design, or supporting components, send the spec or the BOM and we will flag the risks before you commit.

FAQ

Q: What is the difference between the 250W and 350W ratings?

A: The 250W rating applies to natural convection cooling. The 350W rating requires 20.5CFM forced air cooling. The electrical design is the same; the difference is thermal management. If your enclosure has no fan, use the 250W figure for derating calculations.

Q: Can I use the MP-H350SXX-PS for AC and DC input?

A: Yes. The input range is 85-264VAC or 127-370VDC. The same terminals accept both, which simplifies designs that need to operate from either a mains supply or a DC bus.

Q: How do I adjust the output voltage?

A: The module includes an ADJ pin (output voltage adjustment). The adjustment range varies by model — for example, the 24V model adjusts from 21.6V to 27.5V. Use a precision potentiometer or a fixed resistor divider to set the exact voltage.
