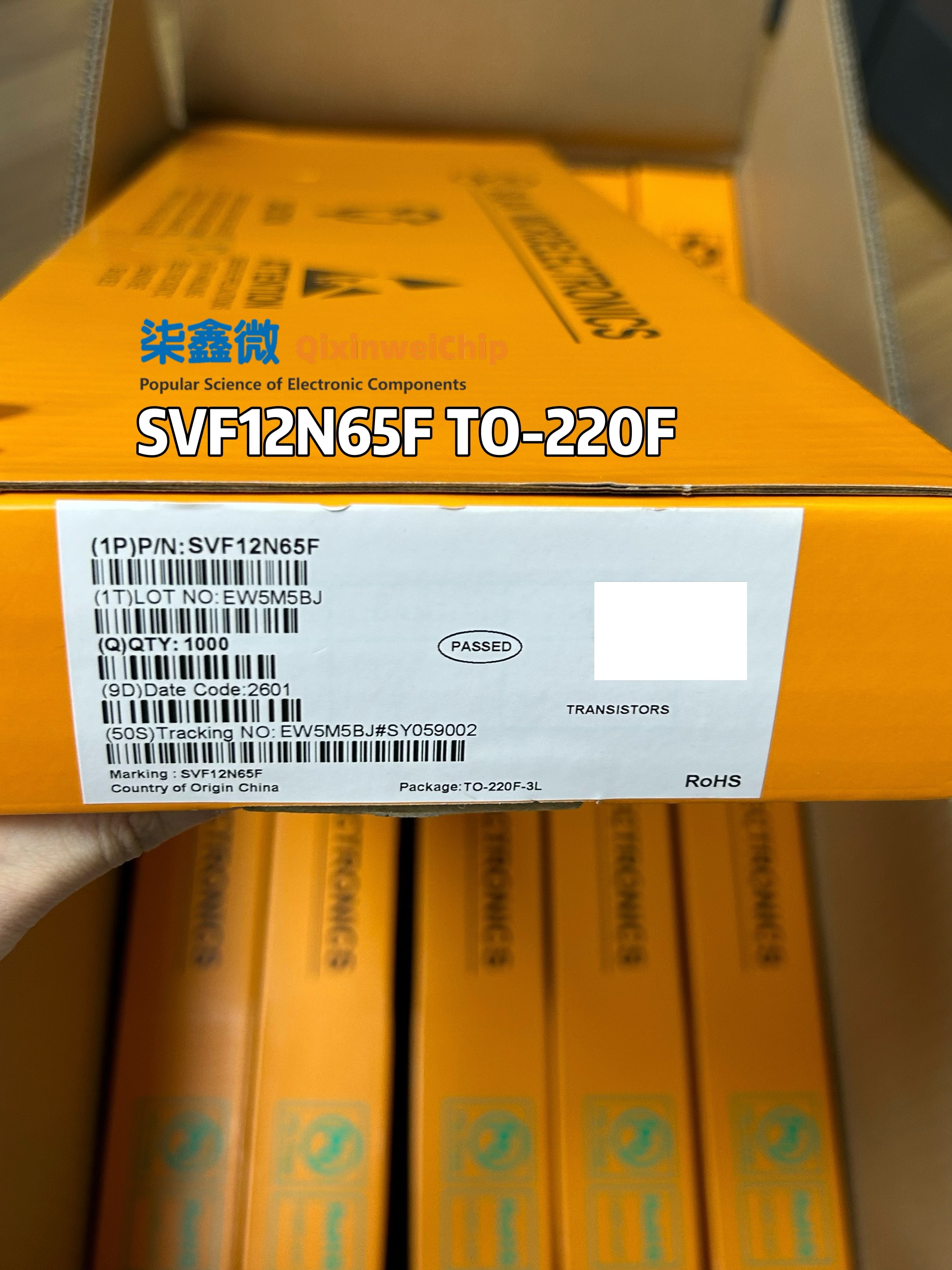

SVF12N65F Guide: 650V, 12A N-Channel MOSFET in TO-220F, F-Cell VDMOS Technology,for AC-DC and Motor Drive Designs

Key Features:

F-Cell™ planar VDMOS technology. Silan’s proprietary process and cell structure deliver low on-resistance and high avalanche withstand capability. The device is characterized for high-energy pulses during avalanche and commutation, which matters in flyback and motor drive topologies where the switch absorbs inductive energy during turn-off.

Fully isolated TO-220F package. The TO-220F outline has an isolated metal tab, meaning the MOSFET can be mounted directly to a heatsink without an insulating pad or thermal grease between the device and the sink. This reduces assembly steps, eliminates a potential thermal interface failure point, and simplifies the mechanical design of compact power supplies.

Fast switching with low gate charge. The 33nC gate charge and low reverse transfer capacitance (15pF) support fast switching edges, reducing switching losses in PWM converters. The improved dv/dt capability is specifically noted in the manufacturer’s documentation, which is essential in bridge topologies where the device sees rapid voltage excursions.

Wide operating temperature range. The -55°C to +150°C junction temperature range covers industrial and consumer power supply applications, with margin for elevated ambient temperatures inside sealed enclosures.

Typical Applications:

AC-DC switching power supplies: Flyback, forward, and half-bridge topologies in adapters, chargers, and open-frame power modules. The 650V rating provides margin for the reflected voltage and leakage inductance spike in offline converters.

DC-DC converters: High-voltage step-down and step-up stages where a 650V switch is required.

High-voltage H-bridge PWM motor drives: Brushless DC motor drives and inverter stages where the switch sees the full bus voltage plus inductive kickback.

Power factor correction (PFC) circuits: Boost PFC stages in AC-DC front ends, where the MOSFET switches the inductor current at high voltage.

FAQ

Q: What is the difference between the SVF12N65F and the SVF12N65T?

A: Both are 650V, 12A N-channel MOSFETs from Silan’s SVF12N65 series. The “F” suffix denotes the TO-220F package (fully isolated tab), while the “T” suffix denotes the standard TO-220 package (non-isolated tab). The silicon and electrical ratings are the same; the package choice determines whether an external insulating pad is required in your thermal design.

Q: Can the SVF12N65F be used without an insulating pad on the heatsink?

A: Yes. The TO-220F package has an internally isolated tab, so the device can be mounted directly to a grounded heatsink without a mica or silicone insulating pad. This is one of the primary reasons designers choose the TO-220F outline over the standard TO-220 for offline power supplies.

Q: What is the RDS(on) of the SVF12N65F?

A: The typical on-resistance is 0.64Ω at VGS=10V, and the maximum is 640mΩ at the same gate drive. At 6A continuous current, the conduction loss is approximately 23W; verify the thermal design can dissipate this in your enclosure.

Q: Is the SVF12N65F a logic-level MOSFET?

A: No. The gate threshold voltage is 4V, and the device is characterized at VGS=10V for the specified RDS(on). It is not intended for direct drive from 3.3V logic. A gate driver that provides 10V (or at least 8V) is required to achieve the full current rating and low on-resistance.

Q: What applications is the SVF12N65F designed for?

A: The manufacturer specifies AC-DC switching power supplies, DC-DC converters, and high-voltage H-bridge PWM motor drives. It is also suitable for PFC boost stages and other offline switching topologies where a 650V, 12A switch is required.

Q: Can the SVF12N65F replace a 600V MOSFET?

A: Yes, in most cases — a 650V device provides additional voltage margin over a 600V part, which is generally safe. However, the reverse is not true: a 600V part cannot replace a 650V device if the circuit relies on the extra margin during switching transients.

Q: What is the power dissipation rating of the SVF12N65F?

A: The datasheet lists 51W for the TO-220F package and 210W for the TO-220 package. The difference reflects the thermal resistance of the isolated versus non-isolated package. In practice, the achievable dissipation depends on the heatsink and the ambient temperature inside the enclosure.

Conclusion

The SVF12N65F is a workhorse high-voltage MOSFET. It is not a benchmark-breaking part, and it does not try to be. What it offers is a 650V, 12A switch in a fully isolated TO-220F package, built on a mature planar VDMOS process, with switching characteristics that are adequate for the majority of offline power supplies and motor drives in the 50W to 200W class. The F-Cell™ structure delivers low on-resistance and good avalanche ruggedness, and the isolated package simplifies thermal mounting in compact designs.

For selection, the critical checks are straightforward: confirm the 650V rating provides enough margin for your topology’s worst-case drain voltage; verify the 640mΩ maximum RDS(on) against your conduction loss budget at the actual operating temperature; and ensure the gate drive provides at least 8V (ideally 10V) to achieve the specified performance. For higher-current or lower-RDS(on) requirements, step up within the SVF12N65 family or evaluate a larger die in the same package.
